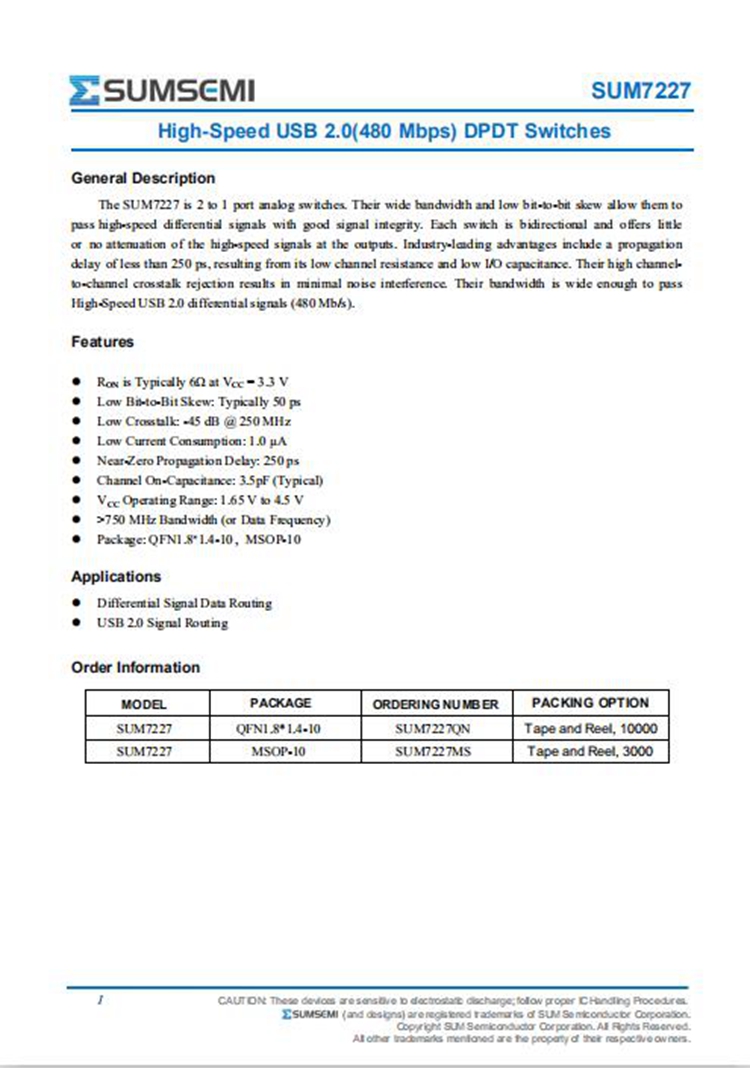

General Description

The SUM7227 is 2 to 1 port analog switches. Their wide bandwidth and low bit-to-bit skew allow them to

pass high-speed differential signals with good signal integrity. Each switch is bidirectional and offers little

or no attenuation of the high-speed signals at the outputs. Industry-leading advantages include a propagation

delay of less than 250 ps, resulting from its low channel resistance and low I/O capacitance. Their high channel

to-channel crosstalk rejection results in minimal noise interference. Their bandwidth is wide enough to pass

High-Speed USB 2.0 differential signals (480 Mb/s).

Features

?

RON is Typically 6Ω at VCC = 3.3 V

?

Low Bit-to-Bit Skew: Typically 50 ps

?

Low Crosstalk: -45 dB @ 250 MHz

?

Low Current Consumption: 1.0 µA

?

Near-Zero Propagation Delay: 250 ps

?

Channel On-Capacitance: 3.5pF (Typical)

?

VCC Operating Range: 1.65 V to 4.5 V

?

>750 MHz Bandwidth (or Data Frequency)

?

Package: QFN1.8*1.4-10，MSOP-10

Applications

?

Differential Signal Data Routing

?

USB 2.0 Signal Routing
