DESCRIPTION
The SUM5223 is an advanced CMOS analog switch fabricated in Sub−micron silicon gate CMOS technology. The part also features guaranteed Break Before Make (BBM) switching, assuring the switches never short the driver.

FEATURES

? Ultra-Low RON < 0.55 Ω at VCC = 4.3 V
? Single Supply Operation from 1.65 V ~ 5.5 V
? Low Crosstalk
? Full 0 ~ VCC Signal Handling Capability
? High Off − Channel Isolation
? Low Standby Current, < 50 nA
? Low Distortion
? RON Flatness of 0.15 Ω
? High Continuous Current Capability: ±300 mA Through Each Switch
? Applications in Cell Phone Audio Block/Speaker and Earphone Switching Ring−Tone Chip/Amplifier Switching/Modems
? ESD : Human Body Model > 4000 V (Reference Document: MIL-STD-883H Method 3015.8)

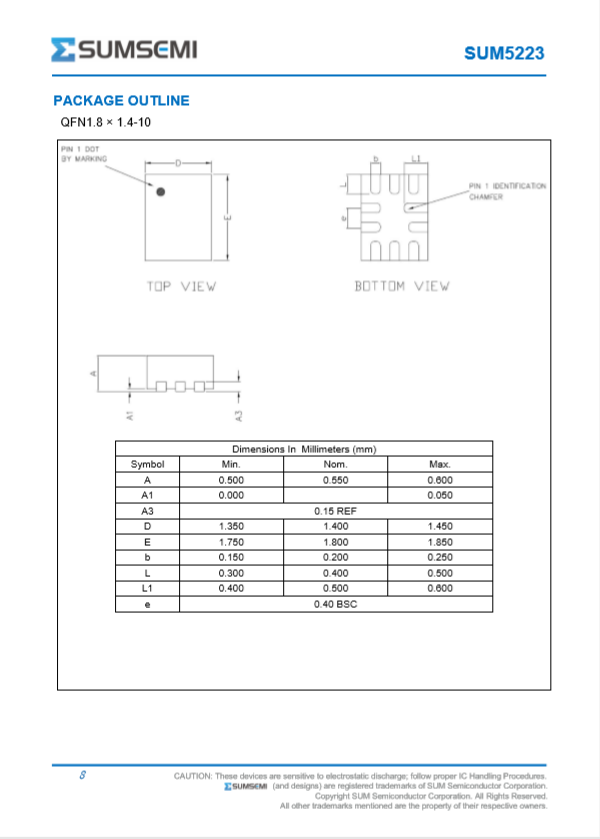

? Package: QFN1.8 × 1.4-10; DFN3 × 3-10; MSOP-10
